$2,499.00

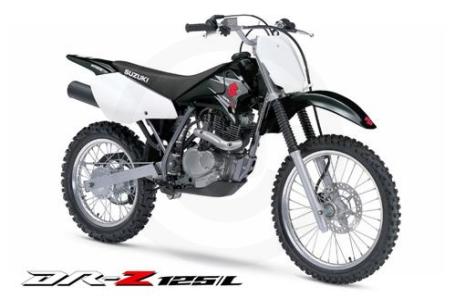

2007 Suzuki DR-Z125L
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

If you're looking to join the off-road excitement, you've come to the right place. The DR-Z125 is designed for teenagers and adults who are developing their off-road skills. The DR-Z125 has power and performance, with plenty of low-end and mid-range torque, matched by lightweight agility.


So what are you waiting for? With the DR-Z125, now's the time to get in on the action!

    Specs
    • Engine: 124cc, 4-stroke, single-cylinder, SOHC 2-valve, air-cooled
    • Bore Stroke: 57.0 x 48.8mm
    • Compression Ratio: 9.5:1
    • Fuel System: MikuniT VM20SS
    • Lubrication: Wet sump
    • Ignition: CDI
    • Starter: Kick
    • Transmission: 5-speed constant mesh
    • Final Drive: 428 Chain
    • Overall Length: 1885mm (74.2 in.)
    • Overall Width: 770mm (30.3 in.)
    • Overall Height: 1095mm (43.1 in.)
    • Seat Height: 805mm (32.0 in.)
    • Ground Clearance: 290mm (11.4 in.)
    • Wheel Base: 1270mm (50.0 in.)
    • Dry Weight: 80 kg (176 lbs.)
    • Suspension Front: Telescopic, oil-damped
    • Suspension Rear: Link-type, oil-damped
    • Brakes Front: Single hydraulic disc
    • Brakes Rear: Single drum
    • Tires Front: 70/100-19
    • Tires Rear: 90/100-16
    • Fuel Tank Capacity: 6.6 liter (1.7 gal.)
    • Color: Yellow, Black
    Chassis Features
    • Sharp off-road styling with fuel tank, radiator shrouds and frame covers patterned after RM models; handlebar, front fender and number plate shared with RM85; plus seat and rear fender inspired from RM85
    • Two wheel/tire versions to fit young riders and adults: DR-Z125 - F: 70/100-17, R: 90/100-14, DR-Z125L - F: 70/100-19, R: 90/100-16
    • Lightweight and durable steel frame and swingarm
    • Lightweight aluminum wheel rims for reduced weight
    • Long-travel, oil damped front fork and link-type rear suspension provide a smooth, compliant ride
    • Strong braking performance provided by single front disc brake with RM85 caliper. Rear drum brake.
    Engine Features
    • Compact 125cc 4-stroke, SOHC, single-cylinder, air-cooled engine designed for ease-of-operation and low maintenance
    • Tuned intake tract and exhaust system for more low-to-mid rpm power
    • Five-speed transmission with link-type gearshift system for precise operation and positive feel
    • MikuniT VM20SS carburetor for smooth throttle response
    • Digital-type CDI ignition system with timing set to enhance the engine's low-rpm power characteristics
    Key Features
    • Entry-level off-road model in two different wheel/tire size versions

    Specifications

    Engine
    Engine Type 4-stroke, single-cylinder, SOHC 2-valve, air-cooled
    Displacement 124cc
    Bore and Stroke 57.0 x 48.8mm
    Cooling air-cooled
    Compression Ratio 9.5:1
    Fuel System MikuniT VM20SS
    Ignition CDI
    Chassis
    Front Suspension Telescopic, oil-damped
    Front Brakes Single hydraulic disc
    Front Tire 70/100-19
    Rear Suspension Link-type, oil-damped
    Rear Brakes Single drum
    Rear Tire 90/100-16
    Dimensions
    Dry Weight 176 lbs. (81 kg)
    Fuel Capacity 1.7 gal (6.6 l)
    Wheelbase 50.0 in (1270mm)
    Ground Clearance 11.4 in (290mm)
    Seat Height 32.0 in (805mm)
    Transmission
    Transmission 5-speed constant mesh
    Final Drive 428 Chain
    General
    Colors Yellow, Black

    Compare Models

    		 Print








    Year 2007
    Manufacturer Suzuki
    Model DR-Z125L
    Style Off-Road
    MSRP* $2,499.00
    Chassis
    Front Suspension Telescopic, oil-damped
    Front Brakes Single hydraulic disc
    Front Tire 70/100-19
    Rear Suspension Link-type, oil-damped
    Rear Brakes Single drum
    Rear Tire 90/100-16
    Dimensions
    Dry Weight 176 lbs. (81 kg)
    Fuel Capacity 1.7 gal (6.6 l)
    Wheelbase 50.0 in (1270mm)
    Ground Clearance 11.4 in (290mm)
    Seat Height 32.0 in (805mm)
    Trail
    Rake
    Engine
    Engine Type 4-stroke, single-cylinder, SOHC 2-valve, air-cooled
    Displacement 124cc
    Bore and Stroke 57.0 x 48.8mm
    Cooling air-cooled
    Compression Ratio 9.5:1
    Fuel System MikuniT VM20SS
    Ignition CDI
    General
    Colors Yellow, Black
    Warranty
    Transmission
    Transmission 5-speed constant mesh
    Final Drive 428 Chain
