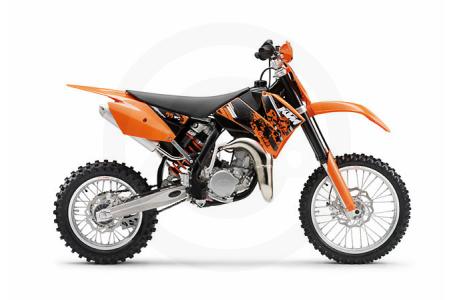

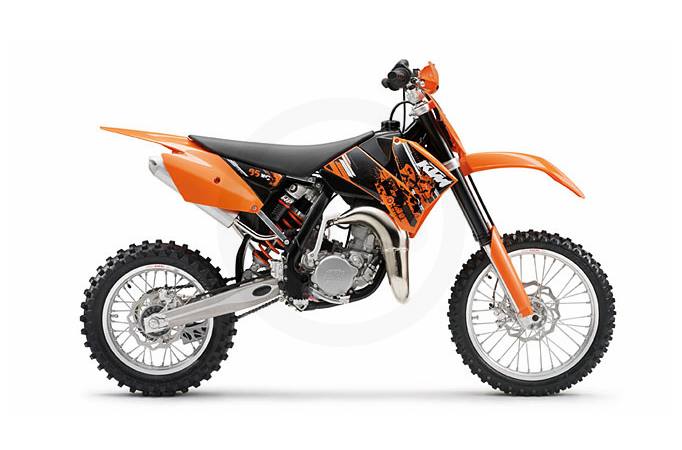

2008 KTM 85 XC
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Even under extreme loads, this full-fledged racing bike (seat height = 900 mm) wins you over with its sturdy frame, 43-mm WP upside-down forks and fully adjustable PDS system. And together with its top quality, exhaust-controlled cylinder, the even further improved engine supplies maximum power and plenty of torque.


What more could a biker’s heart desire?

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 84.9 cc
    • Bore x stroke: 47 x 48.95 mm (1.85 x 1.93")
    • Starter: Kickstarter
    • Transmission: 6 gears
    • Carburetor: Keihin PWK 28
    • Control: Power valve
    • Engine lubrication: Mixture lubrication 1:40
    • Transmission lubrication: 15W50
    • Primary drive: 19:66
    • Final drive: 14:46
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Moric digital 2M1
    Chassis
    • Frame: Double grinded central double-cradle-type frame
    • Subframe: Aluminium
    • Handlebar: Aluminium Ø 22 mm (0.87")
    • Front suspension: WP USD Ø 43 mm (1.69")
    • Rear suspension: WP monoshock PDS
    • Suspension travel front / rear: 275 / 300 mm (10.83 / 11.81")
    • Front brake: Disc brake Ø 220 mm (8.66")
    • Rear brake: Disc brake Ø 200 mm (7.87")
    • Rims, front / rear: 1.6 x 17"; 1.85 x 14" Aluminium
    • Tires, front / rear: 70/100-17; 90/100-14
    • Chain: 1/2 x 5/16" 124 R
    • Main silencer: Aluminium
    • Steering head angle: 66°
    • Wheel base: 1290 mm ± 10 mm (50.79"±0.39")
    • Ground clearance (unloaded): 385 mm (15.16")
    • Seat height: 900 mm (35.43")
    • Fuel capacity: approx. 5 liters (1.32 gal)
    • Weight (no fuel): approx. 66 kg (145.5 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 84.9 cc
    Bore and Stroke 47/48.95 mm (1.85/1.93 in.)
    Cooling Liquid
    Fuel System Keihin PWK 28
    Ignition Moric digital 2M1
    Chassis
    Front Suspension WP USD Ø 1.69 in. (43 mm)
    Front Brakes Disc brake Ø 8.66 in. (220 mm)
    Front Tire 70/100-17
    Rear Suspension WP monoshock PDS
    Rear Brakes Disc brake Ø 7.87 in. (200 mm)
    Rear Tire 90/100-14
    Dimensions
    Dry Weight 145.5 lbs (66 kg)
    Fuel Capacity 1.32 gal. (5 l)
    Wheelbase 50.79 ± 0.39 in. (1290 ± 10 mm)
    Ground Clearance 15.16 in. (385 mm)
    Seat Height 35.43 in. (900 mm)
    Rake 66°
    Transmission
    Transmission 6 gears
    Final Drive 14:46

    Compare Models

    		 Print








    Year 2008
    Manufacturer KTM
    Model 85 XC
    Style Motocross
    Chassis
    Front Suspension WP USD Ø 1.69 in. (43 mm)
    Front Brakes Disc brake Ø 8.66 in. (220 mm)
    Front Tire 70/100-17
    Rear Suspension WP monoshock PDS
    Rear Brakes Disc brake Ø 7.87 in. (200 mm)
    Rear Tire 90/100-14
    Dimensions
    Dry Weight 145.5 lbs (66 kg)
    Fuel Capacity 1.32 gal. (5 l)
    Wheelbase 50.79 ± 0.39 in. (1290 ± 10 mm)
    Ground Clearance 15.16 in. (385 mm)
    Seat Height 35.43 in. (900 mm)
    Trail
    Rake 66°
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 84.9 cc
    Bore and Stroke 47/48.95 mm (1.85/1.93 in.)
    Cooling Liquid
    Compression Ratio
    Fuel System Keihin PWK 28
    Ignition Moric digital 2M1
    General
    Colors
    Warranty
    Transmission
    Transmission 6 gears
    Final Drive 14:46
