$8,048.00

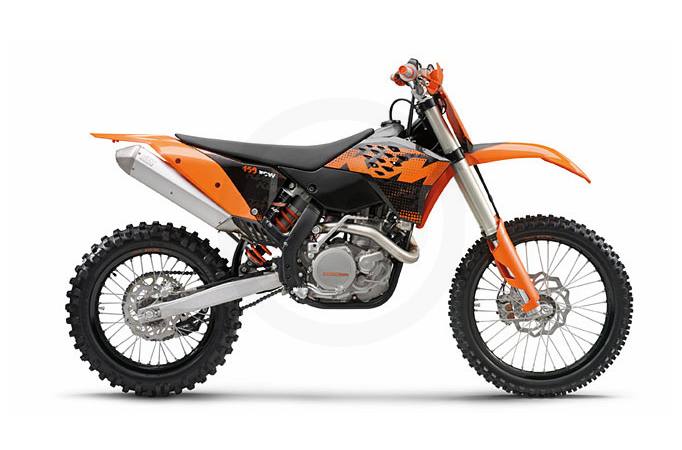

2008 KTM 450 XC-W (R)
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Loads of torque and plenty of performance all packed up in the world’s best Enduro chassis. Always up front on any course and in all the tests.

    Engine
    • Engine type: Single cylinder, 4-stroke, SOHC, 4 valves
    • Displacement: 449.39 cc
    • Bore x stroke: 95 x 63.4 mm (3.74 x 2.5")
    • Compression ratio: 11.9:1
    • Starter / Battery: Kickstarter and E-Starter / 4 Ah
    • Transmission: 6 gears wide-ratio
    • Carburetor: Keihin MX FCR 39
    • Control: 4 V / OHC with cam levers
    • Lubrication: Pressure lubrication with 2 Eaton pumps
    • Engine lubrication: 10W50
    • Primary drive: 33:76
    • Final drive: 14:50
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Kokusan digital 4K-3B
    Chassis
    • Frame: Central double-cradle-type 25CrMo4
    • Subframe: Aluminium, removable
    • Handlebar: Tapered Magura Aluminium Ø 28/22 mm (1.10/0.87")
    • Front suspension: WP USD Ø 48 mm (1.89")
    • Rear suspension: WP monoshock PDS
    • Suspension travel, front / rear: 300 / 335 mm (11.81 / 13.19")
    • Front brake: 260mm (10.24") disc, Brembo double piston
    • Rear brake: 220mm (8.6") disc, Brembo single piston
    • Rims, front / rear: 1.60 x 21"; 2.15 x 18"
    • Tires, front / rear: 80/100-21"; 110/100-18"
    • Chain: X-ring chain 5/8 x 1/4"
    • Main silencer: Aluminium w /USFS spark arrestor
    • Steering head angle: 63.5°
    • Trail: Adjustable
    • Wheel base: 1481±10 mm (58.31±0.39")
    • Ground clearance (unloaded): 380 mm (15")
    • Seat height: 925 mm (36.42")
    • Fuel capacity (approx.): 9.2 liters (2.43 gal)
    • Weight - no fuel (approx.): 112.2 kg (247.36 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 4-stroke, SOHC, 4 valves
    Displacement 449.39 cc
    Bore and Stroke 95 x 63.4 mm (3.74 x 2.5 in.)
    Cooling Liquid
    Compression Ratio 11.9:1
    Fuel System Keihin MX FCR 39
    Ignition Kokusan digital 4K-3B
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm)
    Front Brakes 10.24 in. (260 mm) disc, Brembo double piston
    Front Tire 80 x 100-21 in.
    Rear Suspension WP monoshock PDS
    Rear Brakes 8.6 in. (220 mm) disc, Brembo single piston
    Rear Tire 110 x 100-18 in.
    Dimensions
    Dry Weight 247.36 lbs (112.2 kg)
    Fuel Capacity 2.43 gal (9.2 l)
    Wheelbase 58.31 ± 0.39 in. (1481 ± 10 mm)
    Ground Clearance Unloaded: 15 in. (380 mm)
    Seat Height 38.78 in. (985 mm)
    Trail Adjustable
    Rake 63.5°
    Transmission
    Transmission 6 gears wide-ratio
    Final Drive 14:50

    Compare Models

    		 Print








    Year 2008
    Manufacturer KTM
    Model 450 XC-W (R)
    Style Off-Road
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm)
    Front Brakes 10.24 in. (260 mm) disc, Brembo double piston
    Front Tire 80 x 100-21 in.
    Rear Suspension WP monoshock PDS
    Rear Brakes 8.6 in. (220 mm) disc, Brembo single piston
    Rear Tire 110 x 100-18 in.
    Dimensions
    Dry Weight 247.36 lbs (112.2 kg)
    Fuel Capacity 2.43 gal (9.2 l)
    Wheelbase 58.31 ± 0.39 in. (1481 ± 10 mm)
    Ground Clearance Unloaded: 15 in. (380 mm)
    Seat Height 38.78 in. (985 mm)
    Trail Adjustable
    Rake 63.5°
    Engine
    Engine Type Single cylinder, 4-stroke, SOHC, 4 valves
    Displacement 449.39 cc
    Bore and Stroke 95 x 63.4 mm (3.74 x 2.5 in.)
    Cooling Liquid
    Compression Ratio 11.9:1
    Fuel System Keihin MX FCR 39
    Ignition Kokusan digital 4K-3B
    General
    Colors
    Warranty
    Transmission
    Transmission 6 gears wide-ratio
    Final Drive 14:50
