Showcase » KTM » 50 SX Mini
Model Quick Search

$3,298.00

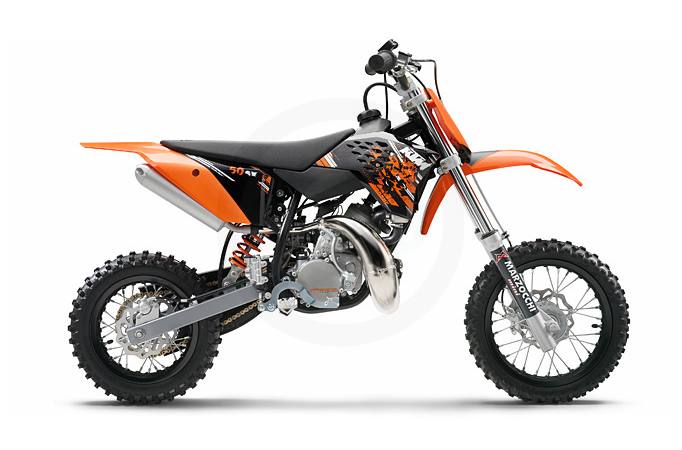

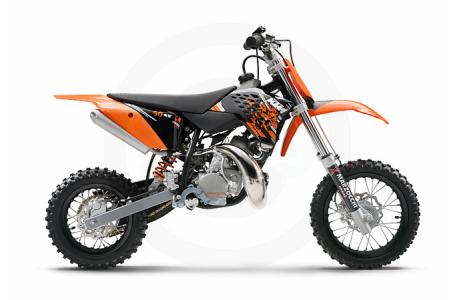

2009 KTM 50 SX Mini
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 49 cc
    • Bore x stroke: 39.5 x 40 mm (1.55 x 1.57")
    • Starter: Kickstarter
    • Transmission: Single gear automatic
    • Carburetor: Dell'Orto PHBG 19 BS
    • Engine lubrication: Mixture oil lubrication 1:60
    • Transmission oil: Motorex ATF Super
    • Primary drive: 61:33
    • Final drive: 11:44
    • Cooling: Liquid cooled
    • Clutch: Centrifugal clutch (adjustable)
    • Ignition: Seletra analog
    Chassis
    • Frame: Double grinded central-double-cradle-type frame
    • Subframe: Steel
    • Handlebar: Pro Taper, Aluminium Ø 22 mm (0.87")
    • Front suspension: Marzocchi Ø 32 mm (1.26")
    • Rear suspension: WP mono shock
    • Suspension travel front/rear: 110 / 171 mm (4.33" / 6.73")
    • Front brake: Disc brake Ø 160 mm (6.3")
    • Rear brake: Disc brake Ø 140 mm (5.51")
    • Rims, front/rear: 1.6 x 10"; 1.6 x 10" Alu
    • Tires, front/rear: 2.50 x 10"; 2.75 x 10"
    • Chain: 1/2 x 3/16"
    • Main silencer: Aluminium
    • Steering head angle: 67.4°
    • Wheel base: 914 mm (35.98")
    • Ground clearance (unloaded): 184 mm (7.24")
    • Seat height: 558 mm (22")
    • Tank capacity: approx. 2 liters (0.53 gal)
    • Weight (no fuel): approx. 37.8 kg (83.33 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid cooled
    Fuel System Dell'Orto PHBG 19 BS
    Ignition Seletra analog
    Chassis
    Front Suspension Marzocchi Ø 1.26 in. (32 mm); Travel: 4.33 in. (110 mm)
    Front Brakes Disc brake Ø 6.3 in. (160 mm)
    Front Tire 2.50 x 10 in.
    Rear Suspension WP mono shock; Travel: 6.73 in. (171 mm)
    Rear Brakes Disc brake Ø 5.51 in. (140 mm)
    Rear Tire 2.75 x 10 in.
    Dimensions
    Dry Weight 83.33 lbs (37.8 kg)
    Fuel Capacity 0.53 gal (2 l)
    Wheelbase 35.98 in. (914 mm)
    Ground Clearance 7.24 in. (184 mm)
    Seat Height 22 in. (558 mm)
    Rake 67.4°
    Transmission
    Transmission Single gear automatic
    Final Drive 11:44

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 50 SX Mini
    Style Youth
    MSRP* $3,298.00
    Chassis
    Front Suspension Marzocchi Ø 1.26 in. (32 mm); Travel: 4.33 in. (110 mm)
    Front Brakes Disc brake Ø 6.3 in. (160 mm)
    Front Tire 2.50 x 10 in.
    Rear Suspension WP mono shock; Travel: 6.73 in. (171 mm)
    Rear Brakes Disc brake Ø 5.51 in. (140 mm)
    Rear Tire 2.75 x 10 in.
    Dimensions
    Dry Weight 83.33 lbs (37.8 kg)
    Fuel Capacity 0.53 gal (2 l)
    Wheelbase 35.98 in. (914 mm)
    Ground Clearance 7.24 in. (184 mm)
    Seat Height 22 in. (558 mm)
    Trail
    Rake 67.4°
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid cooled
    Compression Ratio
    Fuel System DellOrto PHBG 19 BS
    Ignition Seletra analog
    General
    Colors
    Warranty
    Transmission
    Transmission Single gear automatic
    Final Drive 11:44

    Current Promotions

    There are currently no promotions available for this product.
