$4,398.00

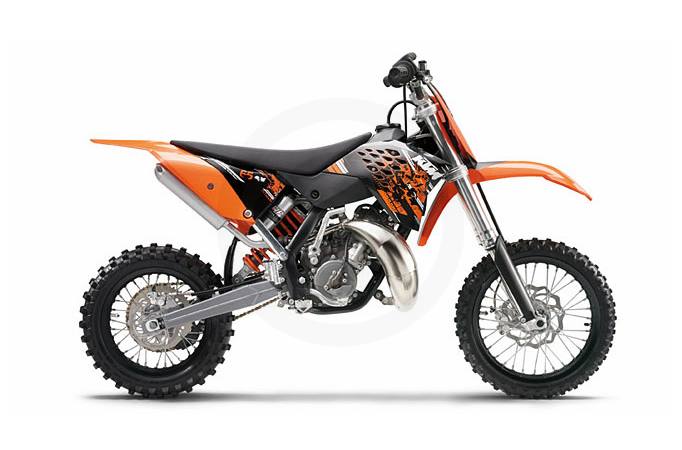

2009 KTM 65 SX
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 64.9 cc
    • Bore x stroke: 45 x 40.8 mm (1.77 x 1.61")
    • Starter: Kickstarter
    • Transmission: 6 gears
    • Carburetor: Mikuni VM 24-505
    • Control: Exhaust control PCEV
    • Engine lubrication: Mixture oil lubrication 1:60
    • Transmission oil: Motorex, SAE 15W-50
    • Primary drive: 61:33
    • Final drive: 11:40
    • Cooling: Liquid cooling
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: AET digital
    Chassis
    • Frame: Double grinded central double-cradle-type frame
    • Subframe: Aluminium
    • Handlebar: Pro Taper, Aluminium Ø 22 mm (0.87")
    • Front suspension: Marzocchi USD Ø 35 mm (1.38")
    • Rear suspension: WP mono shock
    • Suspension travel front/rear: 220 / 270 mm (8.66 / 10.63")
    • Front brake: Disc brake Ø 198 mm (7.80")
    • Rear brake: Disc brake Ø 160 mm (6.3")
    • Rims, front/rear: 1.6 x 14"; 1.6 x 12" Alu
    • Tires, front/rear: 60/100 x 14"; 80/100 x 12"
    • Chain: 1/2 x 1/4"
    • Main silencer: Aluminium
    • Steering head angle: 64.5°
    • Wheel base: 1137 mm (44.76")
    • Ground clearance (unloaded): 280 mm (11.02")
    • Seat height: 750 mm (28.54")
    • Tank capacity: approx. 3.5 liters (0.93 gal)
    • Weight (no fuel): approx. 55.4 kg (122.13 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 64.9 cc
    Bore and Stroke 45 x 40.8 mm (1.77 x 1.61 in.)
    Cooling Liquid cooling
    Fuel System Mikuni VM 24-505
    Ignition AET digital
    Chassis
    Front Suspension Marzocchi USD Ø 1.38 in. (35 mm); Travel: 8.66 in. (220 mm)
    Front Brakes Disc brake Ø 7.80 in. (198 mm)
    Front Tire 60/100 x 14 in.
    Rear Suspension WP mono shock; Travel: 10.63 in. (270 mm)
    Rear Brakes Disc brake Ø 6.3 in. (160 mm)
    Rear Tire 80/100 x 12 in.
    Dimensions
    Dry Weight 122.13 lbs (55.4 kg)
    Fuel Capacity 0.93 gal (3.5 l)
    Wheelbase 44.76 in. (1137 mm)
    Ground Clearance 11.02 in. (280 mm)
    Seat Height 28.54 in. (750 mm)
    Rake 64.5°
    Transmission
    Transmission 6 gears
    Final Drive 11:40

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 65 SX
    Style Youth
    MSRP* $4,398.00
    Chassis
    Front Suspension Marzocchi USD Ø 1.38 in. (35 mm); Travel: 8.66 in. (220 mm)
    Front Brakes Disc brake Ø 7.80 in. (198 mm)
    Front Tire 60/100 x 14 in.
    Rear Suspension WP mono shock; Travel: 10.63 in. (270 mm)
    Rear Brakes Disc brake Ø 6.3 in. (160 mm)
    Rear Tire 80/100 x 12 in.
    Dimensions
    Dry Weight 122.13 lbs (55.4 kg)
    Fuel Capacity 0.93 gal (3.5 l)
    Wheelbase 44.76 in. (1137 mm)
    Ground Clearance 11.02 in. (280 mm)
    Seat Height 28.54 in. (750 mm)
    Trail
    Rake 64.5°
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 64.9 cc
    Bore and Stroke 45 x 40.8 mm (1.77 x 1.61 in.)
    Cooling Liquid cooling
    Compression Ratio
    Fuel System Mikuni VM 24-505
    Ignition AET digital
    General
    Colors
    Warranty
    Transmission
    Transmission 6 gears
    Final Drive 11:40
