Showcase » KTM » 65 XC
Model Quick Search

$4,398.00

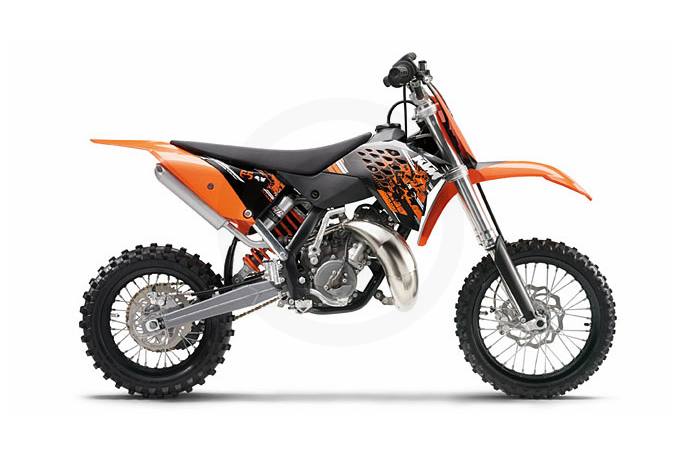

2009 KTM 65 XC
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

This power-bike wants to be outdoors – just like you!


Because there’s nothing cooler for kids between the ages of six and nine than to rocket around on this crosser. Six-gear transmission, hydraulic clutch, Marzocchi upside-down forks, WP shock, fully adjustable chassis, a seat height of ? 750 mm and one thing above all: the power of a big bike!


With the 65 XC, you’ll get to show the adults how something is done for once!

    Engine
    • Engine type: Single Cylinder, 2-Stroke, Case Reed Induction, Liquid Cooled
    • Displacement: 64.85cc
    • Bore x stroke: 45/40.8 mm (1.77/1.61")
    • Starter: Kick starter
    • Transmission: 6 gears
    • Carburetor: Mikuni VM 24
    • Lubrication: Lubrication mixture 60:1
    • Engine lubrication: 15W50
    • Primary drive: 23:75
    • Final drive: 14:50
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Moric digital 2M1
    Chassis
    • Frame: Central double-cradle-type 25CrMo4
    • Subframe: Aluminum 7020
    • Handlebar: Pro-Taper Aluminium Ø 22 mm (0.87")
    • Front suspension: Marzocchi USD Ø 35 mm (1.38")
    • Rear suspension: WP monoshock
    • Suspension travel front/rear: 220/270 mm (8.66/10.63")
    • Brakes, front/rear: Disc brake Ø 200/160 mm (7.87/6.3")
    • Rims, front/rear: 1.6 x 14" / 1.6 x 12" Aluminum
    • Tires, front/rear: 60/100-14"; 80/100-12"
    • Chain: 1/2 x 1/4" O-Ring
    • Main silencer: Aluminum 65 SX
    • Steering head angle: 64.5°
    • Trail: Adjustable
    • Wheel base: 1137mm ± 10mm (44.76"±0.39")
    • Ground clearance (unloaded): 280mm (11")
    • Seat height: 750mm (29.53")
    • Tank capacity: approx. 3.5 liters (0.91 gal)
    • Weight (no fuel): approx. 55.4 kgs (122.14 lbs)

    Specifications

    Engine
    Engine Type Single Cylinder, 2-Stroke, Case Reed Induction
    Displacement 64.85 cc
    Bore and Stroke 45 x 40.8 mm (1.77 x 1.61 in.)
    Cooling Liquid Cooled
    Fuel System Mikuni VM 24
    Ignition Moric digital 2M1
    Chassis
    Front Suspension Marzocchi USD Ø 1.38 in. (35 mm); Travel: 8.66 in. (220 mm)
    Front Brakes Disc brake Ø 7.87 in. (200 mm)
    Front Tire 60/100-14 in.
    Rear Suspension WP monoshock; Travel: 10.63 in. (270 mm)
    Rear Brakes Disc brake Ø 6.3 in. (160 mm)
    Rear Tire 80/100-12 in.
    Dimensions
    Dry Weight 122.14 lbs (55.4 kg)
    Fuel Capacity 0.91 gal (3.5 l)
    Wheelbase 44.76 ± 0.39 in. (1137 ± 10 mm)
    Ground Clearance 11 in. (280 mm)
    Seat Height 29.53 in. (750 mm)
    Trail Adjustable
    Rake 64.5°
    Transmission
    Transmission 6 gears
    Final Drive 14:50

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 65 XC
    Style Youth
    MSRP* $4,398.00
    Chassis
    Front Suspension Marzocchi USD Ø 1.38 in. (35 mm); Travel: 8.66 in. (220 mm)
    Front Brakes Disc brake Ø 7.87 in. (200 mm)
    Front Tire 60/100-14 in.
    Rear Suspension WP monoshock; Travel: 10.63 in. (270 mm)
    Rear Brakes Disc brake Ø 6.3 in. (160 mm)
    Rear Tire 80/100-12 in.
    Dimensions
    Dry Weight 122.14 lbs (55.4 kg)
    Fuel Capacity 0.91 gal (3.5 l)
    Wheelbase 44.76 ± 0.39 in. (1137 ± 10 mm)
    Ground Clearance 11 in. (280 mm)
    Seat Height 29.53 in. (750 mm)
    Trail Adjustable
    Rake 64.5°
    Engine
    Engine Type Single Cylinder, 2-Stroke, Case Reed Induction
    Displacement 64.85 cc
    Bore and Stroke 45 x 40.8 mm (1.77 x 1.61 in.)
    Cooling Liquid Cooled
    Compression Ratio
    Fuel System Mikuni VM 24
    Ignition Moric digital 2M1
    General
    Colors
    Warranty
    Transmission
    Transmission 6 gears
    Final Drive 14:50
