Showcase » KTM » 200 XC
Model Quick Search

$6,998.00

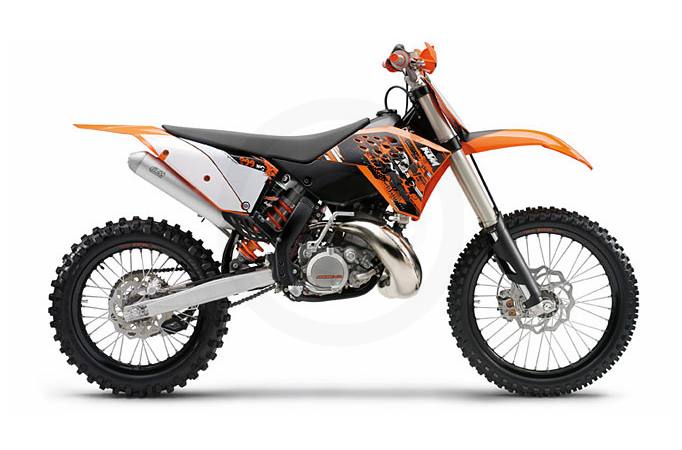

2009 KTM 200 XC
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

A winner seldom comes alone.


The 200 XC is the ideal solution for offroad fans looking for the best of both worlds. With the same power and performance as its big sister the 250 XC and even greater improvements to its enduro characteristics, this enduro is simply mercilessly fast on any racetrack. On the other hand, the 200 EXC pampers its pilots with the playful handling of a 125. Ease and agility, combined with the power to win – what more do you want?


With the 200 XC, KTM presents a one-of-a-kind motorcycle: right in between and yet right on the money! The right choice for every enduro rider who’d like to break free of the strict class-based society. Pure power, no matter where the path takes you. Reliability in reaching the highest goals. And the feeling of triumph is also within reach.

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 193 cc
    • Bore x stroke: 64/60 mm (2.52/2.36")
    • Starter: Kickstarter
    • Transmission: 6 gears semi-close-ratio
    • Carburetor: Keihin PWK 36 S AG
    • Control: TVC twin valve control
    • Lubrication: Mixture oil lubrication 1:60
    • Transmission oil: 15W50
    • Primary drive: 23:73
    • Final drive: 14:48
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Kokusan digital 2K-3
    Chassis
    • Frame: Central double-cradle-type 25CrMo4
    • Subframe: Aluminium 7020, removable
    • Handlebar: Neken Aluminium Ø 28/22 mm (1.10/0.87")
    • Front suspension: WP USD Ø 48 mm (1.89")
    • Rear suspension: WP monoshock PDS
    • Suspension travel front/rear: 300/335 mm (11.81/13.19")
    • Front brake: 260mm (10.24") disc, Brembo double piston
    • Rear brake: 220mm (8.66") disc, Brembo single piston
    • Rims, front/rear: 1.60 x 21"; 2.15 x 18" Excel
    • Tires, front/rear: 80/100-21"; 100/100-18"
    • Chain: X-ring chain 5/8 x 1/4"
    • Main silencer: Aluminium 250 SX
    • Steering head angle: 63°
    • Trail: Adjustable
    • Wheel base: 1475±10 mm (58.1±0.39")
    • Ground clearance (unloaded): 390 mm (15.35")
    • Seat height: 985 mm (38.78")
    • Tank capacity: approx. 11 liters (2.9 gal)
    • Weight (no fuel): approx. 94.4 kg (208.12 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 193 cc
    Bore and Stroke 64 x 60 mm (2.52 x 2.36 in.)
    Cooling Liquid cooled
    Fuel System Keihin PWK 36 S AG
    Ignition Kokusan digital 2K-3
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm); Travel: 11.81 in. (300 mm)
    Front Brakes 10.24 in. (260 mm) disc, Brembo double piston
    Front Tire 80/100-21 in.
    Rear Suspension WP monoshock PDS; Travel: 13.19 in. (335 mm)
    Rear Brakes 8.66 in. (220 mm) disc, Brembo single piston
    Rear Tire 100/100-18 in.
    Dimensions
    Dry Weight 208.12 lbs (94.4 kg)
    Fuel Capacity 2.9 gal (11 l)
    Wheelbase 58.1 ± 0.39 in. (1475±10 mm)
    Ground Clearance 15.35 in. (390 mm)
    Seat Height 38.78 in. (985 mm)
    Trail Adjustable
    Rake 63°
    Transmission
    Transmission 6 gears semi-close-ratio
    Final Drive 14:48

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 200 XC
    Style Off-Road
    MSRP* $6,998.00
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm); Travel: 11.81 in. (300 mm)
    Front Brakes 10.24 in. (260 mm) disc, Brembo double piston
    Front Tire 80/100-21 in.
    Rear Suspension WP monoshock PDS; Travel: 13.19 in. (335 mm)
    Rear Brakes 8.66 in. (220 mm) disc, Brembo single piston
    Rear Tire 100/100-18 in.
    Dimensions
    Dry Weight 208.12 lbs (94.4 kg)
    Fuel Capacity 2.9 gal (11 l)
    Wheelbase 58.1 ± 0.39 in. (1475±10 mm)
    Ground Clearance 15.35 in. (390 mm)
    Seat Height 38.78 in. (985 mm)
    Trail Adjustable
    Rake 63°
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 193 cc
    Bore and Stroke 64 x 60 mm (2.52 x 2.36 in.)
    Cooling Liquid cooled
    Compression Ratio
    Fuel System Keihin PWK 36 S AG
    Ignition Kokusan digital 2K-3
    General
    Colors
    Warranty
    Transmission
    Transmission 6 gears semi-close-ratio
    Final Drive 14:48
