Showcase » KTM » 690 Duke
Model Quick Search

$10,898.00

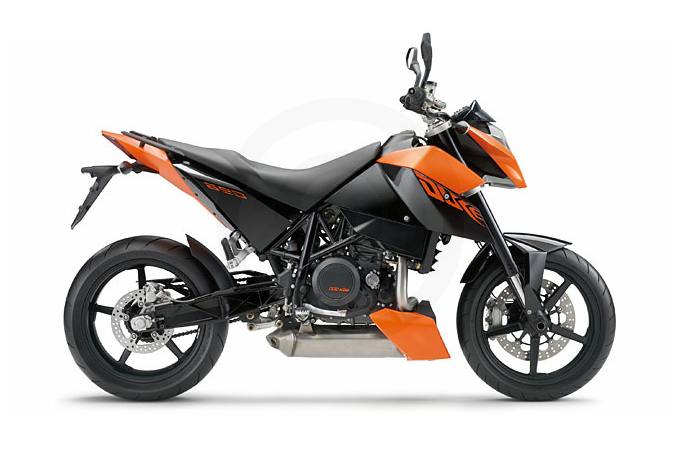

2009 KTM 690 Duke
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The exotic outsider just a few years ago, the Duke has long since created its own domain, including its own values. Or better said: performance values. If superathletes feared the Duke then, now it’s practically unbeatable.


To ride the Duke you need skill, courage and of course: style!

    Engine
    • Engine type: Single cylinder, 4-stroke
    • Displacement: 654 cc
    • Bore x stroke: 102 / 80 mm (4.01 / 3.15")
    • Performance (homologated): 48 kW / 7500 rpm
    • Max. torque: 67 Nm / 5500 rpm
    • Compression ratio: 11.8:1
    • Starter/Battery: E-Starter / 12 V 8.6 Ah
    • Transmission: 6 gears, dog clutch engagement
    • Fuel Mixture Generation: Keihin EFI with EPT (Electr. Power Throttle)
    • Control: 4 V / OHC with roller rocker levers
    • Lubrication: Pressure lubrication with 2 Eaton pumps
    • Engine lubrication: Motorex, fully synthetic, SAE 10W-60
    • Primary drive: 36:79
    • Final drive: 16:40
    • Cooling: Liquid cooled
    • Clutch: APTC slipper clutch, hydraulically operated
    • Motor Management: Keihin EMS
    Chassis
    • Frame: Chromium-Molybdenum trellis frame, powder coated
    • Subframe: Aluminium 7020
    • Handlebar: Aluminium, Ø 28 / 22 mm (1.10 / 0.87"), tapered
    • Front suspension: WP USD Ø 48 mm (1.89")
    • Rear suspension: WP mono shock with Pro-Lever linkage
    • Suspension travel front/rear: 140 / 140 mm (5.51 / 5.51")
    • Front brake: Brembo four piston, radially bolted caliper, brake disc Ø 320 mm (12.6")
    • Rear brake: Brembo single piston, floating caliper, brake disc Ø 240 mm (9.45")
    • Rims, front/rear: Cast aluminium wheels 3.5 x 17"; 5 x 17"
    • Tires, front/rear: 120/70 R 17"; 160/60 R 17"
    • Chain: X-Ring 5/8 x 1/4"
    • Battery: 12 V / 8.6 Ah
    • Main silencer: Stainless steel underfloor silencer with integrated catalytic converter
    • Steering head angle: 63.5°
    • Trail: 115 mm (4.53")
    • Wheel base: 1472 ± 15 mm (57.95 ± 0.59")
    • Ground clearance (unloaded): 155 mm (6.1")
    • Seat height: 865 mm (34.06")
    • Tank capacity: approx. 13.5 liters / 2.5 liters reserve (3.56 / 0.66 gal)
    • Weight (no fuel): approx. 148.5 kg (327.4 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 4-stroke
    Displacement 654 cc
    Bore and Stroke 102 x 80 mm (4.01 x 3.15 in.)
    Cooling Liquid cooled
    Compression Ratio 11.8:1
    Fuel System Keihin EFI with EPT (Electr. Power Throttle)
    Ignition E-Starter / 12 V 8.6 Ah
    Chassis
    Front Suspension WP USD Ø 48 mm (1.89")
    Front Brakes Brembo four piston, radially bolted caliper, brake disc Ø 320 mm (12.6")
    Front Tire 120/70 R 17 in.
    Rear Suspension WP mono shock with Pro-Lever linkage
    Rear Brakes Brembo single piston, floating caliper, brake disc Ø 240 mm (9.45")
    Rear Tire 160/60 R 17 in.
    Dimensions
    Dry Weight 148.5 kg (327.4 lbs.)
    Fuel Capacity 13.5 l
    Wheelbase 1472 ± 15 mm (57.95 ± 0.59")
    Seat Height 865 mm (34.06")
    Trail 115 mm (4.53 in.)
    Rake 63.5 deg
    Transmission
    Transmission Transmission: 6 gears, dog clutch engagement; Primary drive: 36:79
    Final Drive 16:40
    General
    Colors Orange, White, Black

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 690 Duke
    Style Sport Touring
    MSRP* $10,898.00
    Chassis
    Front Suspension WP USD Ø 48 mm (1.89")
    Front Brakes Brembo four piston, radially bolted caliper, brake disc Ø 320 mm (12.6")
    Front Tire 120/70 R 17 in.
    Rear Suspension WP mono shock with Pro-Lever linkage
    Rear Brakes Brembo single piston, floating caliper, brake disc Ø 240 mm (9.45")
    Rear Tire 160/60 R 17 in.
    Dimensions
    Dry Weight 148.5 kg (327.4 lbs.)
    Fuel Capacity 13.5 l
    Wheelbase 1472 ± 15 mm (57.95 ± 0.59")
    MPG
    Seat Height 865 mm (34.06")
    Trail 115 mm (4.53 in.)
    Rake 63.5 deg
    Engine
    Engine Type Single cylinder, 4-stroke
    Displacement 654 cc
    Bore and Stroke 102 x 80 mm (4.01 x 3.15 in.)
    Cooling Liquid cooled
    Compression Ratio 11.8:1
    Fuel System Keihin EFI with EPT (Electr. Power Throttle)
    Ignition E-Starter / 12 V 8.6 Ah
    General
    Speedometer
    Tachometer
    Odometer
    Colors Orange, White, Black
    Warranty
    Transmission
    Transmission Transmission: 6 gears, dog clutch engagement; Primary drive: 36:79
    Final Drive 16:40

    Current Promotions

    There are currently no promotions available for this product.
